Intelligent System Control
Self-learning function, intelligent start/stop;
Detect the ambient temperature to prevent the ambient temperature frombeing too high temperature to cause high-temperature failure.

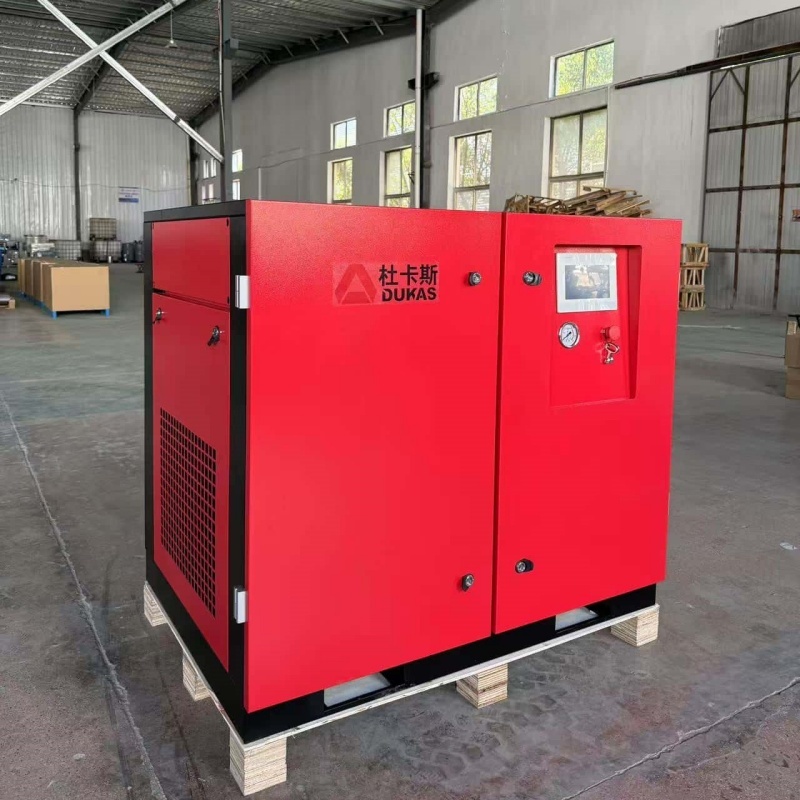

Oil Free Screw Air Compressor
Detect the terminal pressure of the post-treatment equipment to effectively prevent the compressed air's pressure different from being too high to waste electric energy, Detect the motor's temperature to protect it.
Classification:
Introduction
Oil Free Screw Air Compressor Specification
| Model | Work pressure (MPa) | AAD (m3/min) | Motor power (kw) | Noise dB(A) | Diameters of cooling water inlet and outlet | Quantity of coolig water Water entering 32℃ T/H | Lubricating water (L) | Dimension (L x W x H mm) | Weight (kg) | Air outlet |
| DW06AW | 0.8 1.0 | 0.78 0.65 | 5-5 | 58 | 3/4" | 1·5 | 10 | 800 x 800 x 1100 | 430 | 3/4" |
| DW08A/W | 0.8 1.0 1.25 | 1.17 1.05 0.81 | 7.5 | 58 | 3/4" | 2 | 10 | 800 x 800 x 1100 | 470 | 3/4" |
| DW11AW | 0.8 1.0 1.25 | 1.65 1.42 1.10 | 11 | 60 | 1" | 2·5 | 26 | 1200 x 760 x 1300 | 580 | 3/4" |
| DW15A/W | 0.8 1.0 1.25 | 2.43 2.17 1.80 | 15 | 63 | 1" | 3·5 | 26 | 1200 x 760 x 1300 | 620 | 3/4" |
| DW18A/W | 0.8 1.0 1.25 | 3.13 2.82 2.05 | 18·5 | 65 | 1" | 4 | 30 | 1400 x 900 x 1450 | 680 | 1" |
| DW22A/W | 0.8 1.0 1.25 | 3.52 3.21 2.78 | 22 | 65 | 1" | 5 | 30 | 1400 x 900 x 1450 | 730 | 1" |
| DW30AW | 0.8 1.0 1.25 | 5.12 4.43 3.63 | 30 | 67 | 1 1/2 | 7 | 40 | 1550 x 1150 x 1500(A) 1500 x 1150 x 1300(W) | 1100 | 11/4" |
| DW37A/W | 0.8 1.0 1.25 | 6.30 5.33 4.77 | 37 | 67 | 11/2 | 9 | 40 | 1550 x 1150 x 1500(A) 1500 x 1150 x 1300(W) | 1150 | 11/4" |
| DW45A/W | 0.8 1.0 1.25 | 7.4 6.30 5.56 | 45 | 68 | 1 1/2" | 10 | 90 | 1800 x 1300 x 1750(A) 1800 x 1300 x 1680(W) | 1390 | 2" |
| DW55A/W | 0.8 1.0 1.25 | 9.6 8.55 7.67 | 55 | 70 | 11/2" | 12 | 120 | 1980 x 1400 x 1850(A) 1800 x 1300 x 1680(W) | 1470 | 2" |
| DW75AAV | 0.8 1.0 1.25 | 13.00 11.50 9.70 | 75 | 73 | 1 1/2" | 18 | 120 | 2100 x 1600 x 1900(A) 1800 x 1300 x 1750(W) | 2250 1630 | 2" |
| DW90A/W | 0.8 1.0 1.25 | 14.8 13.90 12.60 | 90 | 73 | 1 1/2" | 20 | 180 | 2400 x 1600 x 2000(A) 2200 x 1550 x 1800(W) | 2650 2350 | 2 1/2" |
| DW110A/W | 0.8 1.0 1.25 | 19.85 16.66 15.56 | 110 | 78 | 2" | 24 | 180 | 2700 x 1600 x 2100(A) 2200 x 1550 x 1800(W) | 2950 2460 | 2 1/2" |
| DW132A/W | 0.8 1.0 1.25 | 23.10 19.97 16.90 | 132 | 78 | 2" | 30 | 240 | 3000 x 1700 x 2250(A) 2200 x 1550 x 1800(W) | 3500 2500 | 2 1/2" |
| DW160W | 0.8 1.0 1.25 | 28.11 25.45 22.52 | 160 | 80 | 3" | 35 | 240 | 3000 x 1800 x 2100 | 3700 | 3 |
| DW185W | 0.81.0 1.25 | 33.97 29.00 25.21 | 185 | 80 | 3" | 38 | 300 | 3000 x 1800 x 2100 | 3750 | 3" |
| DW200W | 0.8 1.0 1.25 | 36.75 32.78 29.24 | 200 | 80 | 4" | 42 | 300 | 3100 x 1850 x 2100 | 3900 | 4 |
| DW220W | 0.8 1.0 1.25 | 39.67 36.75 29.63 | 220 | 80 | 4" | 47 | 360 | 3100 x 1850 x 2100 | 4200 | |
| DW250W | 0.8 1.0 1.25 | 43.5 39.30 34 | 250 | 80 | 4 | 53 | 360 | 3100 x 1850 x 2100 | 4600 | 4 |
Product Information
Energy Saving And Motor Protection
Detect the terminal pressure of the post-treatment equipment to effectively prevent the compressed air's pressure different from being too high to waste electric energy, Detect the motor's temperature to protect it.
Air End
Adopts the international top-level third-generation asymmetricwire twin-screw air end.Optimized flow channel design, with a large rotor, low speed and high efficiency.Swedish SKF heavy-duty bearings, double-lip lip shaft seal, durable and reliable.
Water Air Separator
Large capacity water air separator, high-quality water separation components and air filter components.
The Latest Generation Super Stable Inverter
Using well-known brand frequency converter, quality stability, global joint protection.
Self-learning function, intelligent start/stop.
Detect the ambient temperature to prevent the ambient temperature frombeing too high temperature to cause high-temperature failure.
Detect the terminal pressure of the post-treatment equipment to efectively prevent the compresed ai's pressure diferent from being too high to waste electric energy.
Detect the motor's temperature to protect it.
Key words:
Oil Free Screw Air Compressor
VIDEO
Closed

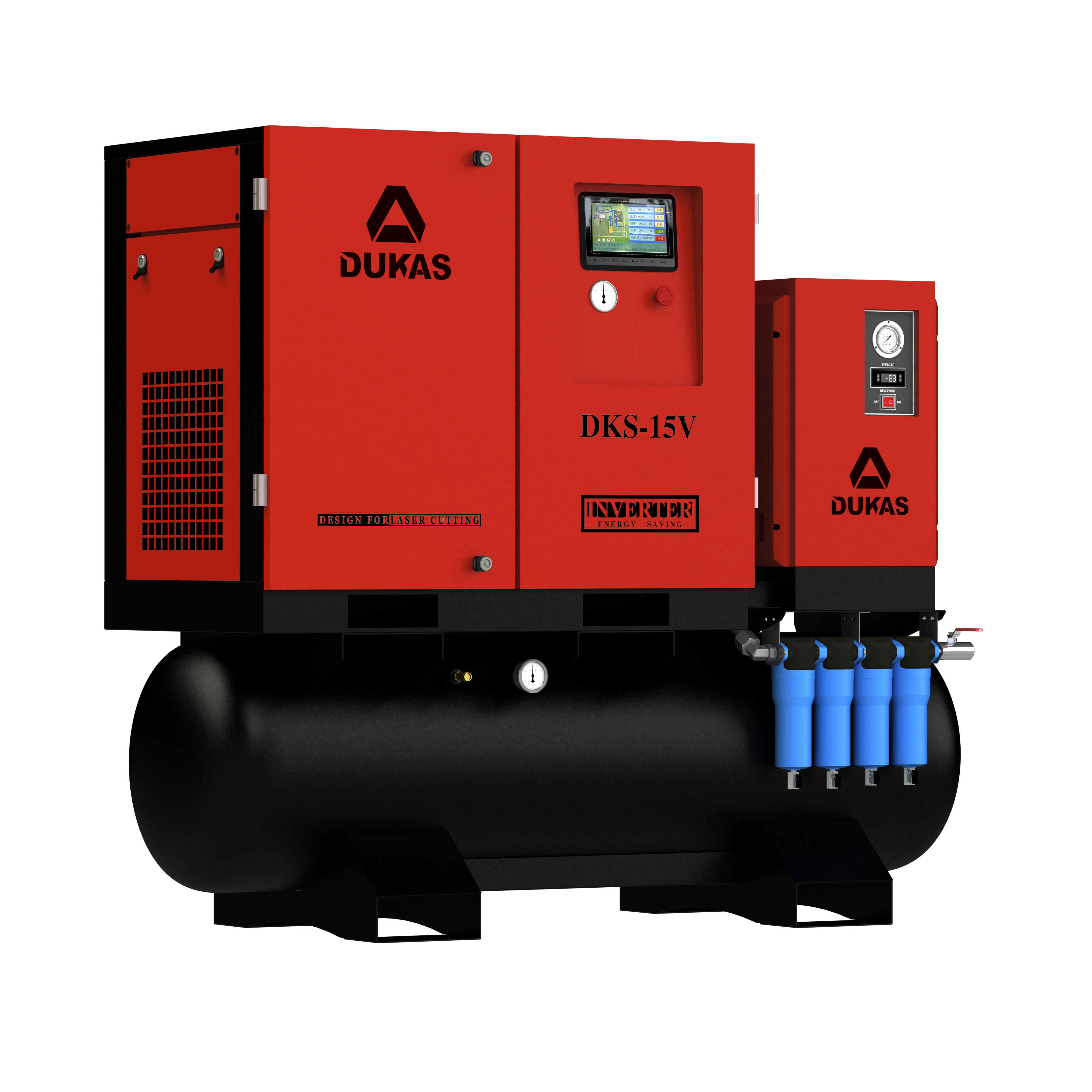

Electric Portable Screw Air Compressor
Closed

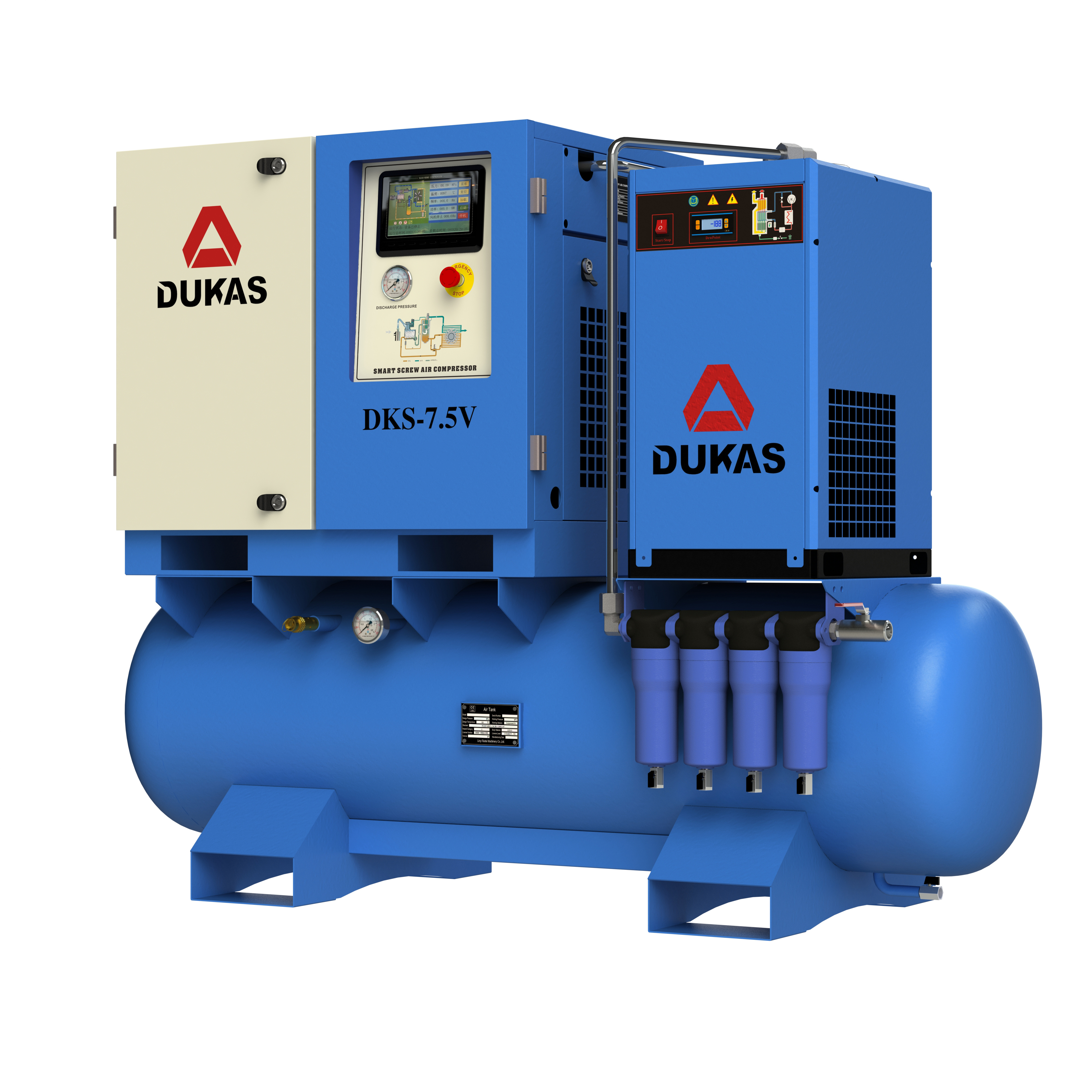

37kw 16kg 4-in-1 air comoressor
